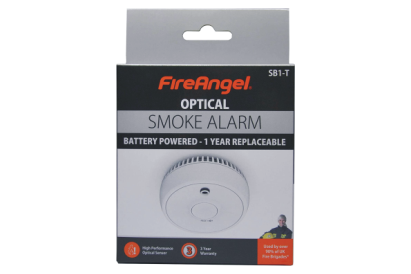

| FireAngel SB1-T 1 Year Optical Smoke Alarm |
|
|
|
- The Fireangel SB1-T optical smoke alarm ideal for grade F2 installations were cost is a priority. Optical alarms are recommended in the British Standard BS 5839-6 for installation in circulation areas such as hallways and landings.
- The optical smoke sensing chamber works by 'seeing' smoke as it enters the alarm ‑ making it perfect for slow burning fires where there is thick white smoke. For the fastest response to all fire types search for FireAngel Specification Multi‑Sensor alarms.
- • Battery powered optical smoke alarm
- • 9V replaceable battery
- • Resistant to nuisance alarms
- • 85dB alarm (3 meters)
- • Test/Silence
- • Low battery warning
- • Battery life time approx 1 years
- • 3 year warranty (not including replaceable batteries)
|
|
|
|
|
| |
| Technical Specification |
Model - Description : |
Fireangel SB1-T 1 Year Optical Smoke Alarm |
| Supply Voltage : |
9VDC |
| Battery : |
9V PP3 1 Year Zinc Carbon |
| Installation Positions : |
Wall and Ceiling |
| Alarm Sound Level : |
85dB(A) at 1m (minimum)
|
| Dimensions : |
119mm (width) x 62mm (height) x 38mm (depth)
|
| Operating Temperature : |
-10 °C to +40 °C |
| Storage Temperature : |
-20 °C to +60 |
| Certified To : |
EN14604:2005+AC:2008
|
Weight : |
113g. |
|
| |
| |
