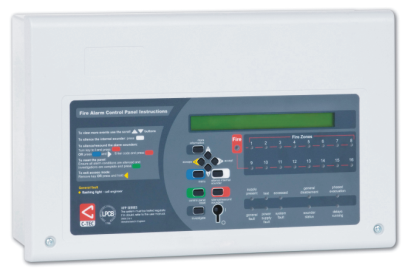

XFP-502 2 Loop 32 Zone Networkable Addressable Fire Alarm Control Panel
Fire Alarm Control Panels
General Features
EN54-2/4 , Loss Prevention Certification Board (LPCB)
Support Hochiki’s ESP and Apollo XP95/Discovery protocols (Optionall)
Two independently programmable conventional sounder circuits
Two programmable inputs
A fault output relay and three programmable relay outputs with voltage free changeover contacts
A day/night (building occupied/unoccupied) function
An investigation delay period function
Individual sensitivity settings for each device
An integral EN54-4/A2 switch mode PSU rated @ 185-260V a.c. 50/60Hz (1.4A on a 16 zone panel, 3A on a 32 zone panel)
Earth fault monitoring
999 event monitoring
Windows-Based upload-download PC software
Specifications
Power Supply
Supply Voltage
230V a.c. ± 10% 50/60Hz
Internal Power Supply
27V d.c Nominal
Total Output Limited Current To
1.4A @ 230V a.c.
Supply and Battery Charcher Monitoring for failure
YES
Battery Monitor for Disconnection or Failure
YES
Battery Protected Against Deep Discharge
YES
Maximum Battery Size And Type
3.2 Ahr
Quiescent Current Drain (1 loop unloaded)
< 50mA
Earth Fault Monitoring
YES
Loop Driver Specification
Number of Loop Driver
2
Line Monitored for open and short circuit
YES
Onboard Loop Isolator with LED Indication when Active
YES
Max.Loop Output Current
500mA
Max. Number for Addressable Device Per Loop
126
Max.Number of Loop Powered Sounder Per Loop
@ 10mA 40
Number of Programmable Sounder Group
15
Number of Programmable Output Sets
16
Conventional Sounder Circuit Specifications
Number of Programmabel Circuits
2
End of line Resistor Value
6800 ½ 5% Tol. 0.25 W
Line Monitored for Open and Short Circuits
YES
Output Fused at
400mA
Max. Number of Souders
@ 20mA 40
Auxiliary Outputs
Type
Relay Voltage Free Single Pole Changeover
Max.Switching Current
1A
Max.Switching Voltage
30 V d.c
Relay 1
Programmed from cause and effect
Relay 2
Programmed from cause and effect
Relay 3
Programmed from cause and effect
Faulth
Active when no faults are present
24V Aux
19.5V min, 28V max. Max current 100mA. Protected by resettable overload circuit
Yardımcı Girişler
Giriş 1
Connect to 0V to trigger. Max input voltage 27V d.c. (non-latching). Programmable from cause and effect.
Giriş 2
Connect to 0V to trigger. Max input voltage 27V d.c. (non-latching). Programmable from cause and effect.
Fuses ( to IEC - EN60127 Pt2)
Main Fuse
1A HRC Seramic 20mm
Battery Fuse
1.6A F 20mm
Panel Indicator and Controls
Control Buttons
Silence, Reset, Resound, Investigate; More Information; Menu
Event scrolling and Menu Access Buttons
Up (1); Down (2); Accept (3); Escape (4)
LCD Display
Two Lines x 40 Character Backlit
Number of Zonal LED Indicator
16
Other LED Indicator
General Fire, System Energised; Pre-Alarm; Remote Output Activated; Menus Accessed; Disablement;
Test; Remote Output Disabled; Silenced; General Fault; System Fault;
Physical Dimensions
Approx. Dimension of Back Box (W x H x D)
380 x 235 x 77mm (plastik). Kapak Dahil
Approx. Dimension of Lid (W x H x D)
380 x 235 x 16mm (plastik)
Approx. Weight ( Without Batteries )
1.9Kg
Cabling Requirements
Type of Cable
Fire Resistent Screeened Cable minimum size 1mm2
Max. Cable Lenght Per Loop
1 KM
Connector Blogs
Plug-on type, largest acceptable conductor size 1.5mm2
Max.Allowable Loop Impedance (Each Conductor)
20 ½
Max. Cable Capacitance
.27μF
Network Specification
Connection
Via AFP711 network driver card fitted at main panel
Max.Number of Main Panel Per Network
8
Max.Number of Repeaters Non-Networked Main Panel
4
Max.Cable Lenght Per Network
1KM
PC Printer Ara Yüzü
PC connection
Via main panel RS232 molex connector (lead supplied in XFP507 upload/
