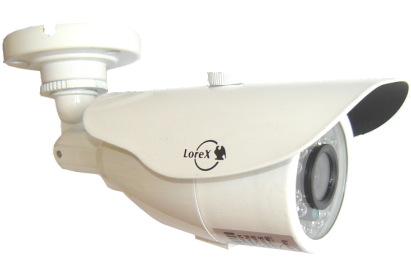

| LOREX LR-AHD324 3 MegaPixel HD-AHD IR Bullet Camera |
|
|
|
|
- LOREX Security Surveillance Technology!
-
LOREX LR-AHD324 cameras offer superior low light performance and has been designed and manufactured for areas with limited to no light
- Key features:
- 3 MegaPixel
- Excellent for Cctv Application
- 20 ~ 30m IR night view distance
- Real time image, High resolution, True colour
- 1/3" Aptina Sensor
- Support OSD Menu
- Built-in IR Cutter Filter
- Easy Installation
- Standard 12V DC System
|
| Price : On Request - In Stock. |
 |
 |
|
| |
| |
|
| Technical Specification |
| Image Sensor : |
1/3" Aptina Low Illumination |
| Resolution : |
3 Megapixel |
| Effective pixels : |
1920(H) X 1536(V) |
| Sensitivity : |
0.1Lux of F1.2(Monochrome) 0.01Lux of F1.2 |
| Lens : |
3,6mm Lens |
| Scanning System : |
Progressive Scan |
| Infrared Distance : |
20m |
| Synchronizing system : |
Inter-sync |
| D-WDR : |
YES |
| D&N : |
YES |
| OSD : |
YES |
| UTC : |
YES |
| Anti Foggy : |
YES |
| Camera ID : |
YES |
| Cable Protection : |
YES |
| Electrical protection |
YES |
| ICR : |
YES |
| IR-CUT : |
Built-in IR-CUT |
| S/N : |
≥50Db |
| IR LED |
￠5 X 24PCS |
| IR Status : |
Under 10 Lux By CDS |
| IR Power On : |
CDS Auto Control |
| DSP : |
NVP2470H |
| Auto White Balance : |
3200~10000`K |
| Video Output : |
AHD/TVI 3MP |
| AEC : |
AUTO/ 1/50（1/60）-1/50,000sec |
| BLC : |
ON/OFF |
| Power Consumption : |
DC12V, 2A |
| Current : |
400mA |
| 2DNR : |
YES |
| Working Temperature : |
-20°C~+55°C |
| Storage Temperature : |
-30°C~+55°C |
| Humidity : |
0~95%RH |
|
| |
| |
| |
| Other Products We Recommend |
|
|
| |
| |
|
|
 |
 |
 |
|
- Design and specifications are subject to change without prior notice.
|
 |
|
|
|
|
