C-TEC NC807C Ceiling and Wall Pull Unit
Ceiling / Wall Pull Cord Switch for Disabled Toilet Alarm Systems
The NC807C ceiling pull generates a standard level call when a resident “pulls” the cord; these are most commonly used in bathrooms. They have no on-board reset function, so a remote reset point is required such as a NC809DB.
Red confidence LED and diffuser emits a bright red glow over a wide area to reassure the user that a call has been made.
Ceiling or wall mountable.

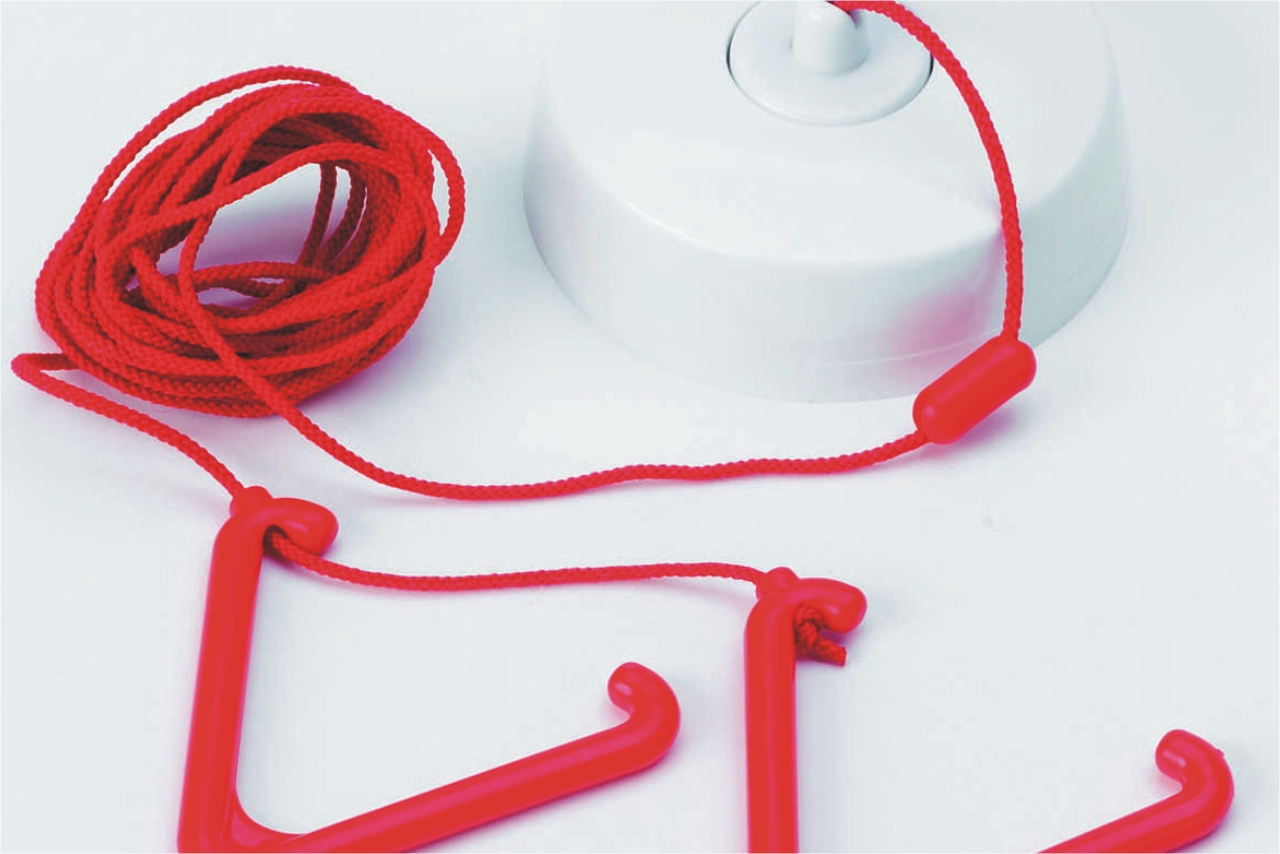

Supplied with 3m of red nylon pull cord and two red open-sided triangular bangles for ease of use by the infirm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No, Description: | NC807C - Ceiling Wall Pull Cord Switch |
| Quiescent Current: | 0mA (none) |
| Alarm Current: | Determined by the type of control equipment and number / type of field devices connected to the system. |
| Indicator: | Red reassurance LED/diffuser (active in Alarm). |
| Control: | Red pull cord c/w two red open-sided triangular bangles. |
| Dimensions: | 93mm diameter x 27mm deep. Base fits 16mm conduit and BESA centres. |
| Construction Finish: | Plastic. |
| IP Rating: | IP41. |
| Weight: | 55g. |
| Operating Temperature: | -5ºC to +40ºC. Max. relative humidity 95% non-condensing. |
