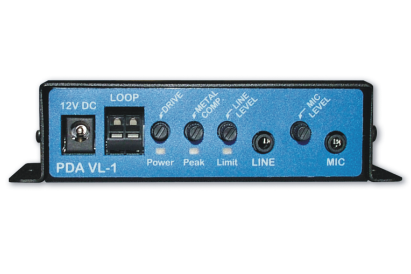

VL1/B1 Vehicle Induction Loop Systems





The VL1/B1 is a 12 volt induction loop kit for use in vehicles.  This kit has an approximate coverage of 1.2 metres square and is supplied with a VL1 mini 12V amplifier, AL8 cigarette lighter power connector, TX2 loop cable and AMT microphone.

new VL1 induction loop amplifier is specifically designed to help hearing aid users communicate more effectively in cars, taxis, buses , elevators and other motor vehicles.

12V vehicle induction loop kit ; includes VL1 mini-12V amplifier, AL8 cigarette lighter power connector, TX2 loop, AMT mic.

The VL1/B1 1.2m.sq. 12V vehicle induction loop system is ideal for cars, taxis, buses and other private/commercial vehicles.
The kit includes a compact mini-induction loop amplifier with keyholes for dashboard mounting, a cigarette lighter power adaptor, an AMT microphone, a pre-formed loop and an ‘AFILS fitted’ sticker.
Metal compensation control helps combat the frequency response problems caused by metal ‘absorbing’ the magnetic field.





Technical Specifications
Rated supply voltage and current : 12V DC
Rated Power Consumption : 500mA
Microphone Input Connection : 3.5mm stereo jack
Microphone Input Impedance : 1kΩ
Microphone Input Voltage : -60dB
Line Input Connector: 3.5mm mono jack
Line Input Impedance : 100kΩ
Line Input Voltage : -27dB stereo unbalanced
Output Type : Current mode
Output Loop Connector : 2-way push terminal
Output Cable : Use the TX2 pre-formed loop supplied in our VL1/B1 and VL1/B2 kits
Output Loop Coverage : 1.2m2 (using the TX2 pre-formed loop)
Maximum RMS Output Current : 1A
Maximum Peak Output Current : 2A
Maximum RMS Load Voltage : 4V
Total Harmonic Distortion : <0.5%
Frequence Response -1dB 120Hz – 16kHz
Frequence Response -3dB 120Hz to 5kHz as per IEC 60118-4
Signal to Noise Ratio : -60dB A weighted (reference maximum RMS current, maximum gain)
AGC Range : 3dB change in output current, reference rated input voltage: 10dB
LED Indicator : Power LED, Limit LED, Peak LED
Controls : Mic Level control, Line Level Control, Metal Compensation Control, Drive current control
Dimensions : 120mm x 31 mm x 60 mm
Weight : 220g (amplifier only)



VL1/B1 12V kit includes:

  • - 1 x VL1 amplifier
  • - 1 x TX2 pre-formed loop
  • - 1 x AMT microphone
  • - 1 x AL8 fused cigarette lighter power adaptor
  • - 1 x ‘AFILS’ fitted sticker



The VL1/B2 24V kit includes:

  • - 1 x VL1 amplifier
  • - 1 x TX2 pre-formed loop
  • - 1 x AMT microphone
  • - 1 x 24V to 12V convertor
  • - 1 x AL7 2.5mm DC power plug to bare ended lead
  • - 1 x ‘AFILS’ fitted sticker
