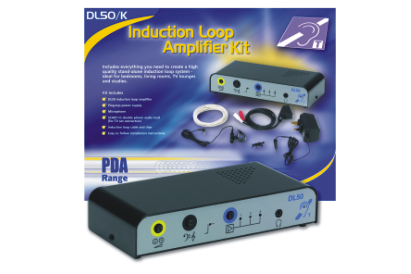

DL50/K Domestic Induction Loop Amplifier Kit





The DL50/K is a Domestic Induction Loop Amplifier Kit.  This kit provides coverage of upto 16 metres square to EN60118-4 or 50 metres square to BS7594 (1993).

Kit Includes:-

  • DL50 Free Standing Loop Amplifier
  • AMT Tie / Desk Microphone
  • APS Scart Lead & Loop Cable






new DL50/K domestic loop amplifier kit includes everything you need to create a high quality stand-alone induction loop system for a bedroom living room TV lounge or study.

Carefully designed to sit discreetly alongside all types of audio-visual equipment the amplifier features one set of phono inputs (for direct connection to television sets etc) two microphone inputs and an alert input (for connection to fire alarms doorbells etc).

Screwdriver-adjustable drive level mix and tone controls are provided allowing the system to be tailored to suit the exact requirements of any room with installation further aided by the provision of a headphone socket output current meter input peak LED.

Features

  • Free-standing - ideal for bedrooms, living rooms, TV lounges, studies and other domestic applications
  • Simple to adjust, tamper-resistant drive, level, tone and mic. priority controls
  • Alert tone input for doorbells, fire alarms, security systems, etc.



Technical Specification
Power Supply : 12Vac 1.5A max
Audio Bandwith : 100Hz to 8kHz
Dynamic Range (Input) :
33dB
Distortion : <0.5% THD
Dynamic Compression Ratio : 1:1 to 10:1
Dimension Amplifier : 185x40x85 (WxHxD)
Standards : EN60118-4 BS7594:1993
Maximum Square Room Coverage : 7 x 7m
Frequence Response : 100 Hz → 8 kHz
Weight : 550g
Kit Contents : DL50 Audio Frequency Induction Loop Amplifier, Flat Head Screwdriver, Induction Loop Cable Reel (33 m), Installation Manual, Microphone with Lead (1.5 m), Mounting Attachments, Plug Top Power Supply, SCART to Phono Audio Connection Lead, Stick On Cabinet

Application Areas


TV Room , Salon , Living Areas
