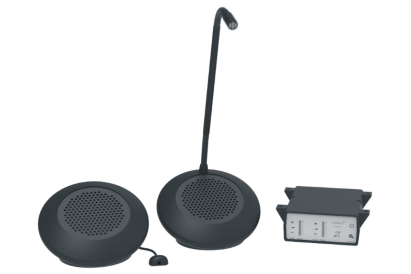

STS-K071 Speaker and Microphone Pod System


  • This entry level speech transfer system provides high quality sound across partitions and safety screens, featuring speaker and microphone pods which can be either free standing or surface mounted. Our open duplex amplifier and mouse microphone are included. It is an affordable system suitable for environments with low ambient noise

    For use where one to one communication takes place through a safety screen:

    • Nursing/Care Homes
    • Hospitals/Health Clinics/Surgeries
    • Reception Counters
    • Banks
    • Retail Stores
  • Kit comprise ;
  • Speech Transfer Amplifier [STS-A31H]
  • Mouse Microphone [STS-M70-1]
  • Staff Loudspeaker Pod [STS-SU2]
  • Speaker Pod [STS-S70]
  • PS-55 Power Supply [PS-55-01]

Price : On Request



Technical Specification
Dimension : Height – 310mm (12.2”) Width – 310mm (12.2”) Depth – 160mm (6.2”)
Construction : ABS Plastic
Speech Transfer Amplifier
Supply Voltage : 12-14V
Quiscent Current : 100mA typical
Operating Current : 2A typical on speech peaks
Power Switch : Push on - push off (tact switch under membrane)
Microphones : Electret, supply 5V via 2.2K load resistor
Speaker Output Power : RMS: 2.5W / 8 Ω 4.4W / 4 Ω
Loop Drive Compliance : Constant current, bounded by 4V RMS & 2A RMS
Total Harmonic Distortion : <5% (loop and speakers)
PS-55 Power Supply
Input : 100-240V 50-60Hz 1A max
Output : 14V 2.14A 30W max
Staff Loadspeaker Pod
Speaker
RMS 5W
Impedance 4 Ω
Output SPL 1W @ 1M 85dB
Frequency Response 150Hz - 10300Hz
Microphone
Directional Response Cardioid
Frequence Response 150Hz - 10500Hz
Sensitivity 49.5dB+ 2dB @ 1kHz
Impedance 1.6K Ohms+ 3-% @ 1kHz
Speaker Pod
RMS 5W
Impedance 4 Ω
Output : SPL 1W @ 1M 85dB
Frequency Responce : 150Hz - 10300Hz
Mouse Microphone
Direnctional Responce : Omni Directional
Frequency Responce : 70Hz - 20KHz
Sensitivity : -46dBv @ 1kHz
Distortion : Typically less than %1
Finish : Black RAL 9005
