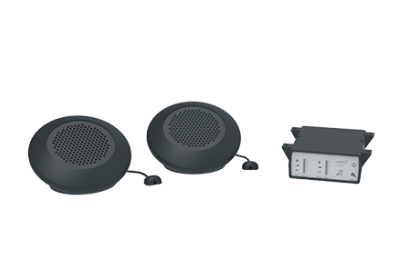

STS-K070 Dual Speaker Pod System


  • This entry-level window intercom system provides high-quality sound across partitions and safety screens, featuring dual speaker pods which can be either free-standing or surface mounted. Our open duplex amplifier and mouse microphone are included.
  • It is an affordable system suitable for environments with low ambient noise.

    For use where one to one communication takes place through a safety screen:

    • Nursing/Care Homes
    • Hospitals/Health Clinics/Surgeries
    • Reception Counters
    • Banks
    • Retail Stores
  • Kit comprise ;
  1. Speech Transfer Amplifier [STS-A31H]
  2. 2 x Mouse Microphone [STS-M70-1]
  3. 2 x Speaker Pod [STS-S70]
  4. PS-55 Power Supply [PS-55-01]

Price : On Request



Technical Specification
Dimension : Height – 310mm (12.2”) Width – 310mm (12.2”) Depth – 160mm (6.2”)
Construction : ABS Plastic
Speech Transfer Amplifier
Supply Voltage : 12-14V
Quiscent Current : 100mA typical
Operating Current : 2A typical on speech peaks
Power Switch : Push on - push off (tact switch under membrane)
Microphones : Electret, supply 5V via 2.2K load resistor
Speaker Output Power : RMS: 2.5W / 8 Ω 4.4W / 4 Ω
Loop Drive Compliance : Constant current, bounded by 4V RMS & 2A RMS
Total Harmonic Distortion : <5% (loop and speakers)
PS-55 Power Supply
Input : 100-240V 50-60Hz 1A max
Output : 14V 2.14A 30W max
Speaker Pod
RMS 5W
Impedance 4 Ω
Output : SPL 1W @ 1M 85dB
Frequency Responce : 150Hz - 10300Hz
Mouse Microphone
Direnctional Responce : Omni Directional
Frequency Responce : 70Hz - 20KHz
Sensitivity : -46dBv @ 1kHz
Distortion : Typically less than %1
Finish : Black RAL 9005
