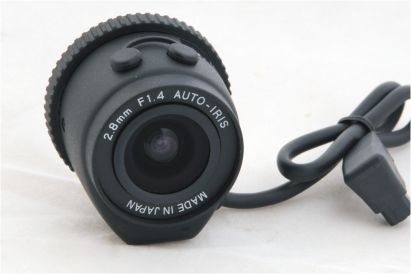

MIE-32814DC 2,8mm Fixed Autoiris CCTV Lens |
|
|
|
|
|
- Focal Lenght : 2,8 mm
- Aparture : F1.4 - 360
- M.O.D (M) : 0,3
- Mount : CS
- Angle of View ( Horizontal ) : Horizontal : 63,8º Vertical : 48,9º Diagonal : 76,2º
- Working Method : İris : DC Iris , Focus : Manual
- Dimensions : 46,7 mm x 32,5 mm x 34,5 mm
- Weight (gr) : 75 gr.
|
|
| Price : On Request - In Stock. |
| |
| Technical Specification |
|
Model No , Description : |
MIE-32814DC - 2,8mm Fixed Auto Iris Lens |
| Image Format(inch) |
1/3" |
Focal Lenght : |
2,8mm |
Aperture : |
F1.4 - 360 |
| Mount : |
CS |
| View Angles : |
Horizontal : 63,8º - Vertical : 48,9º - Diagonal : 76,2º |
| Dimensions : |
46,7 mm x 32,5 mm x 34,5 mm |
| Operating Iris : |
DC Auto Iris |
| Operating Focus : |
Manual |
| Operating Zoom : |
- |
| Minimum Object Distance : |
0.3m |
| Operating Temperature Range(C) |
-10ºC ~ 45ºC |
Net Weight : |
75gr. |
|
|
|
 |
 |
 |
- Design and specifications are subject to change without prior notice.
|
|
|
|
|
|
