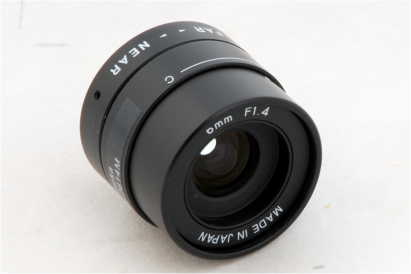

MIEKA MIE-2614M 6mm Fixed Open Iris Lens |
|
|
|
|
|
- Focal Lenght : 6 mm
- Aparture : F1.4 - C
- M.O.D (M) : 0,3
- Mount : CS
- View Angle ( Horizontal ) : Horizontal : 46,0º Vertical : 34,5º Diagonal : 57,5º
- Working Method : Iris : DC Iris , Focus : Manual
- Dimension :Ø38 mm x D36,3 mm
- Weight (gr) : 75 gr.
|
| Price : On Request - In Stock. |
| |
| Technical Specification |
|
Model No , Description : |
MIE-2614M - 6mm Fixed Open Iris Lens |
| Image Format(inch) |
1/3" |
Focal Lenght : |
6mm |
Aperture : |
F1.4 - C |
| Mount : |
CS |
| View Angles : |
Horizontal : 46,0º Vertical : 34,5º Diagonal : 57,5º |
| Dimensions : |
Ø30,9 mm x D31 mm |
| Operating Iris : |
- |
| Operating Focus : |
Manual |
| Operating Zoom : |
- |
| Minimum Object Distance : |
0.3m |
| Operating Temperature Range(C) |
-10ºC ~ 45ºC |
| Package Dimension : |
7cm x 6cm x 5,5cm |
Net Weight : |
75gr. |
|
| |
| Other Related Products |
|
LR-4222CK-Сигнализация автономная(Коричневый цвет)
CO9B -Датчик угарного газа
|
| |
|
 |
 |
 |
- Design and specifications are subject to change without prior notice.
|
|
|
|
|
|
