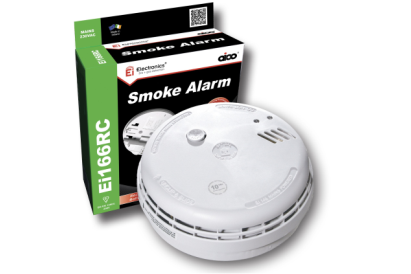

Ei Electronics Ei166RC Mains Powered Optical Smoke Alarm with Lithium Back-up Battery

Mains powered optical smoke alarm from Ei with hush button and 10 year rechargable lithium backup cells.

230V Hard-wired smoke alarm

Available in two versions:

Ei166RC optical smoke alarm (new installations)

Replacement Ei166 optical smoke alarm

10 year Rechargeable Lithium Cell back-up

A maximum of 12 units can be interconnected via 3 core interconnection cable

Other alarms that can be interconnected include:

Ei161RC, Ei164RC, Ei2110

Kitemarked to BS EN 14604:2005

Suitable for installations complying to BS 5839-6: 2013 Grade D, E and F

CE marked

Hush button for false alarm control

Separate mains and warning LEDs for easier identification of alarm status

Auto self-test feature continually monitors the sensor every 40 seconds for additional safety

Precision charging circuit ensures peak cell performance

Low battery LED display

Model : Ei166RC - Mains Powered Optical Smoke Alarm with Lithium Back-up Battery
Sensor Type :	Optical, uses light scatter from smoke
Sensitivity :	Complies with BS 5446 Part 1: 2000
Source :	Contains no radioactive material
Airspeed :	Essentially immune to the effect of airspeed
Button Test :	Simulates the effect of smoke and checks chamber, electronics and horn
Ambient Light :	Chamber housing design and compensation overcomes problems with stray light
Automatic Self-Test :	Smoke Chamber is tested every 40 seconds and unit beeps (without red LED flash) if it is degraded
Insect Screen :	Prevents insects or debris entering chamber (1.00mm mesh size)
Supply Voltage :	230VAC 50Hz
Battery :	Rechargeable Lithium cells
Power On Indicator :	Continuous green LED
Alarm :	Electronic Piezoelectric horn
Sound Level :	85dB(A) (minimum) at 3m
Alarm Status :	Red LED flashes every second on unit sensing fire
Body Material :	UL94VO flame retardant
Fixing :	Easi-fit mounting base
Dimensions :	152mm diameter x 50mm depth
Weight :	320g
Approval :	Kitemarked to BS5446-1:2000 (License no. KM07862) and CE certified
Interconnection :	Up to 12 of these units can be interconnected: - Ei161RC/164RC/166RC smoke or heat alarms - Ei261ENRC/261DENRC CO alarm - Ei128RBU relay base Use with optional control (see below)
Optional Control :	- Ei1529RC Control Switch - MCP401RC Manual Call Point
Operating Temperature :	0°C +40°C
Humidity :	15% - 95%
