Envision ZFP Series Fire Alarm Control Panels


Key ZFP features...

  • • EN54 parts 2 and 4 compliant
  • • Apollo XP95/Discovery protocol
  • • Three cabinet sizes - standard, medium and large
  • • Up to 8 loops per panel (four in standard cabinet)
  • • Up to 64 eight-loop peer to peer panel network capacity
  • • Very flexible cause and effects
  • • Wide range of Switch & Indicator modules
  • • Multiple ‘A-Bus’ expansion PCBs (I/O Units, Relays, etc)
  • • User-friendly full colour touchscreen with dynamic buttons and virtual QWERTY keyboard
  • • Up to 200 separate and programmable zonal LEDs per panel (medium and large cabinets only)
  • • 10,000 programmable and indicatable detection zones
  • • Up to 38 characters of custom text per loop device
  • • Automatic daylight saving (BST/GMT) mode
  • • 20,000+ event memory (filterable by fire, fault & date)
  • • Non-fire supervisory event functionality
  • • Optional thermal printers
  • • Well-designed cabinets with easily removable electronics chassis
  • • 20-way heavy-duty brass earth bar as standard
  • • 72-hour standby (+ 30 min alarm) in standard cabinets
  • • Built-in loop status & current-reading
  • • Powerful engineering and commissioning functions including SafeMode and DeviceManager
  • • Attractive Compact Controllers
  • • Wide range of flush-fit bezels and attractive glazed stainless steel frames
  • • FULLY compatible with addressable ancillaries (Hush Buttons, Sounders, Voice Sounders and Beacons)
  • • Powerful and intuitive PC programming tools
  • • Wide range of supported languages

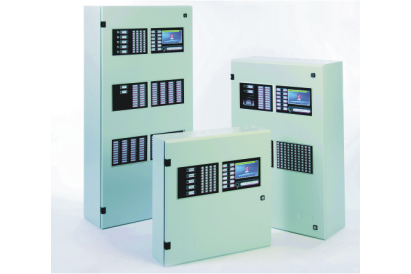

ZFP Touchscreen Fire Alarm Control Panels (WITH BLANK MODULE) ZFP Touchscreen Fire Alarm Control Panels(WITH 20 ZONAL LED)
C-TEC ZFP Dokunmatik Ekran Yangın Alarm Paneli
  1. • 2 or 4 Loops (dependent on model) • 3A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 18Ah batteries • One blank module (ZBLANK) • Measures W450 x H462 x D127mm
   C-TEC ZFP Dokunmatik Ekran Yangın Alarm Paneli (20 Zone LED Göstergeli)
  1. • 2 or 4 Loops (dependent on model) • 3A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 18Ah batteries • 20 Programmable zonal indicators • Measures W450 x H462 x D127mm with name slots (Z44)
Z0230000S/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery Z023020NS/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery
Z0430000S/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery Z043020NS/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery

ZFP Touchscreen Fire Alarm Control Panels (40 ZONAL LEDs, (TO EN54-2/4))
ZFP Touchscreen Fire Alarm Control Panels ( WITH 20 ZONAL LEDs, PRINTER & 2 KEYSWITCHES)
C-TEC ZFP Dokunmatik Ekran Yangın Alarm Paneli (40 Zone LED Göstergeli)
  1. • 2 or 4 Loops (dependent on model) • 3A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 18Ah batteries • 40 Programmable zonal indicators • Measures W450 x H462 x D127mm with name slots (Z47)
  C-TEC ZFP Dokunmatik Ekran Yangın Alarm Paneli (20 Zone LED Göstergeli , Printer , 2 Keyswitch)
  1. • 2 or 4 Loops (dependent on model) • 3A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 18Ah batteries • 20 Programmable zonal indicators • Measures W450 x H462 x D127mm with name slots, thermal printer and two Programmable keyswitches (Z46)
Z023040NS/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery Z023020PS/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery
Z043040NS/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery Z043020PS/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery

ZFP Touchscreen Fire Alarm Control Panels (WITH 40 ZONAL LEDs, PRINTER & 2 KEYSWITCHES)
C-TEC ZFP Dokunmatik Ekran Yangın Alarm Paneli (40 Zone LED Göstergeli , Printer , 2 Keyswitch)
  1. • 2 or 4 Loops (dependent on model) • 3A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 18Ah batteries • 40 Programmable zonal indicators, • Measures W450 x H462 x D127mm thermal printer & two Programmable keyswitches (Z49)

Z023040PS/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery
Z043040PS/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery
ZFP Medium & Large Cabinets
C-TEC ZFP Medium & Large Kabinetler
  1. • 2 or 4 Loops (dependent on model) • 5A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Measures W450 x H720 x D200

Z0250000M/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery
Z0450000M/X - ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery
Panels can be expanded to include up to 3 additional Switch & Indicator Modules .
  1. • 2 or 4 Loops (dependent on model) • 5A EN54-4 PSU (BF362-3/E) • Touchscreen control module (Z41) • Space for 2 x 38Ah batteries • Five blank modules (ZBLANK) • Measures W450 x H960 x D200mm
Z0250000L/X - ZFP 2 Loop Touchscreen Control Panel - XP95/Discovery
Z0450000L/X- ZFP 4 Loop Touchscreen Control Panel - XP95/Discovery
Panels can be expanded to include up to 5 additional Switch & Indicator Modules
ZFP COMPACT CONTROLLERS
ZFP SWITCH & INDICATOR MODULES
C-TEC ZFP Repeater Uzak Kontrol Ünitesi
  1. • Include a touchscreen control module (Z41) and a ‘Hi-NET’ multipath fault-tolerant network PCB (ZHN) • Each Compact Controller requires a separate EN54-4/A2 boxed PSU • Optional flush/surface single module expansion cabinets available (allow a zone indicator module to sit alongside a compact controller, see below) • If using a Compact Controller a seperate ZHN PCB must be fitted at the ZFP main
   Z44- ZFP 20 zone indicator module c/w name slots
Z45- ZFP 20 zone indicator module c/w name slots & 5 switches
Z46- ZFP 20 zone indicator module c/w name slots, printer & 2 switches
Z47- ZFP 40 zone indicator module c/w name slots
Z48- ZFP 40 zone indicator module & 5 switches
ZREP1F - ZFP Repeater(flush) c/w Hi-NET network PCB, all protocols Z49- ZFP 40 zone indicator module c/w printer & 2 switches
ZREP1S - ZFP Repeater surface), c/w Hi-NET network PCB, all protocols Z50/1-100 - ZFP 100 zone indicator module, numbered 1-100
ZHN - ZFP ‘Hi-NET’ Multi-path fault tolerant network PCB Z50/101-200 - ZFP 100 zone indicator module, numbered 101-200
  Z51 - ZFP Printer Module
  ZBLANK - Blank module
ZFP Programming Software

ZTOOLS - ZFP Programming Software
ZG1 - ZFP Single Panel Graphics Interface (dongle and software) Accept, silence & reset controls. Full screen text and running events list
ZG2 - ZFP 1 to 5 Panel Graphics Interface (dongle and software) Accept, silence, reset, enable & disable controls. Full screen text, running events list and graphical site plan
ZG3 - ZFP 1 to 5 Panel Graphics Interface (dongle and software) Accept, silence, reset, enable & disable controls. Full screen text, running events list and graphical site plan. Includes TCP/IP manager allowing connection to remote PCs & other TCP/IP nodes



Вам также могут быть интересны:
LR-SA5 - Детектор дыма
Цена : по запросу
CO-9D -ЖК-дисплей Датчик угарного газа
Цена : по запросу
LR-GE0212 -Щиток защитный лицевой
Цена : по запросу
  • Design and specifications are subject to change without prior notice.
