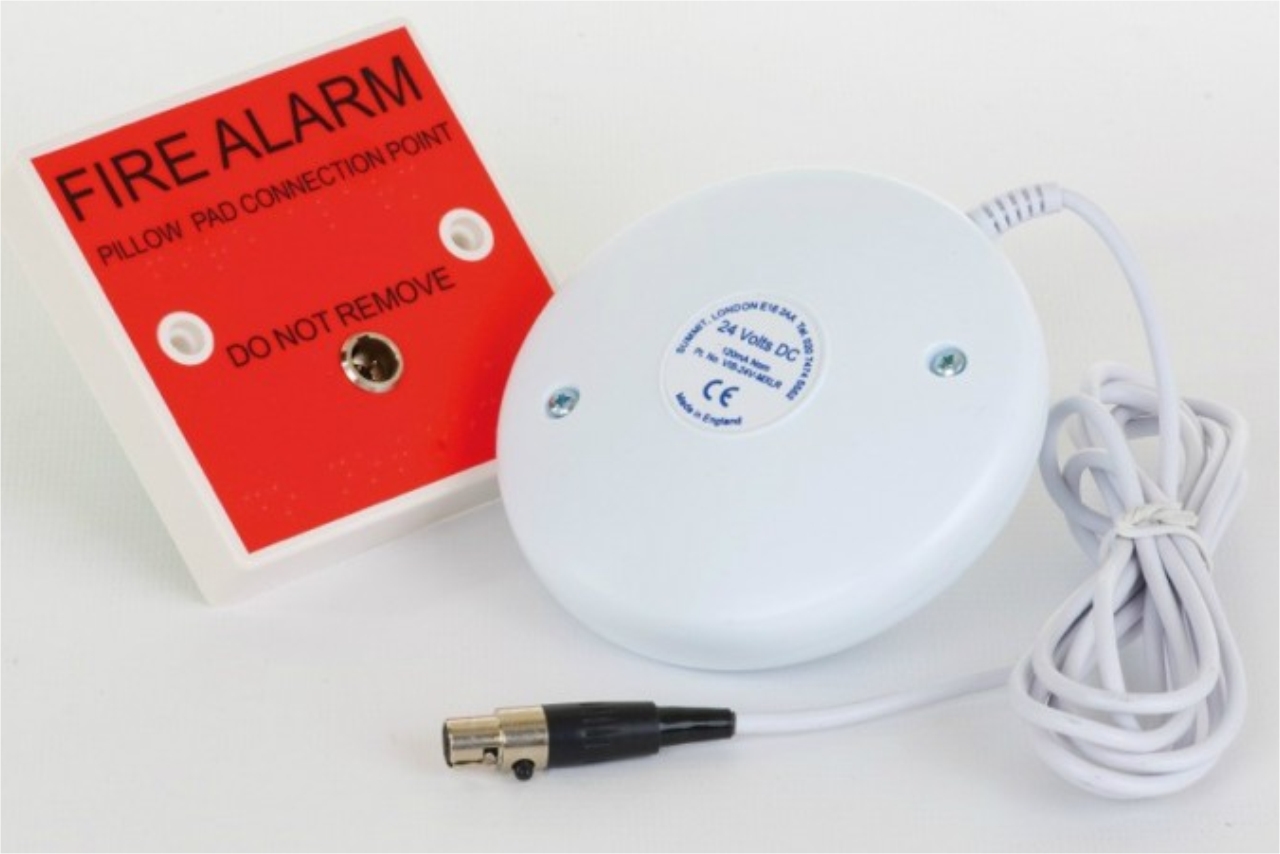

C-TEC BF364 Locking Jack Socket for BF363
Please Note: This is an obsolete product. Click Here For the New Version(BF320JP) .
C-TEC BF364 locking jack socket allows the BF363 vibrating pillow pad to be connected to a conventional 24V DC fire alarm sounder circuit.
This accessory is typically used to provide an early warning of a potential fire alarm condition to people who are hard of hearing. When connected to the fire alarm system’s sounder circuit, the BF363 vibrating pad provides a tactile alarm signal during activation.
The unit is designed for easy installation and mounts on a standard UK single-gang flush or surface back box. It also includes Braille text to assist visually impaired users and improve accessibility compliance.
Main Features
- Allows BF363 vibrating pillow pad connection to fire alarm sounder circuits
- Designed for 24V DC conventional fire alarm systems
- Provides tactile fire alarm warning for the hard of hearing
- Maximum operating voltage 27V DC
- Mounts on standard UK single gang back box
- Includes Braille text for accessibility
Technical Specification
| Order Code | BF364 – Single Gang Locking Jack Plate for BF363 |
| Application | Designed to connect across a conventional fire alarm system's 24V DC sounder circuit. |
| Supply Voltage | 24V DC nominal; 27V DC max. |
| Alarm Current | 120mA nominal; 160mA max. |
| Connection | +24V and 0V. Terminal marked NC is not connected. |
| Dimensions | 85 W x 85 H x 32mm. Can be mounted on a standard UK 25mm single gang flush or surface back box. |
| Notes | The BF363 pad connected to the BF364 is not designed for continuous use and should not be left running for prolonged periods without being reset. |
| Weight | 64 g |
| Working Temperature | -10°C to +60°C |
