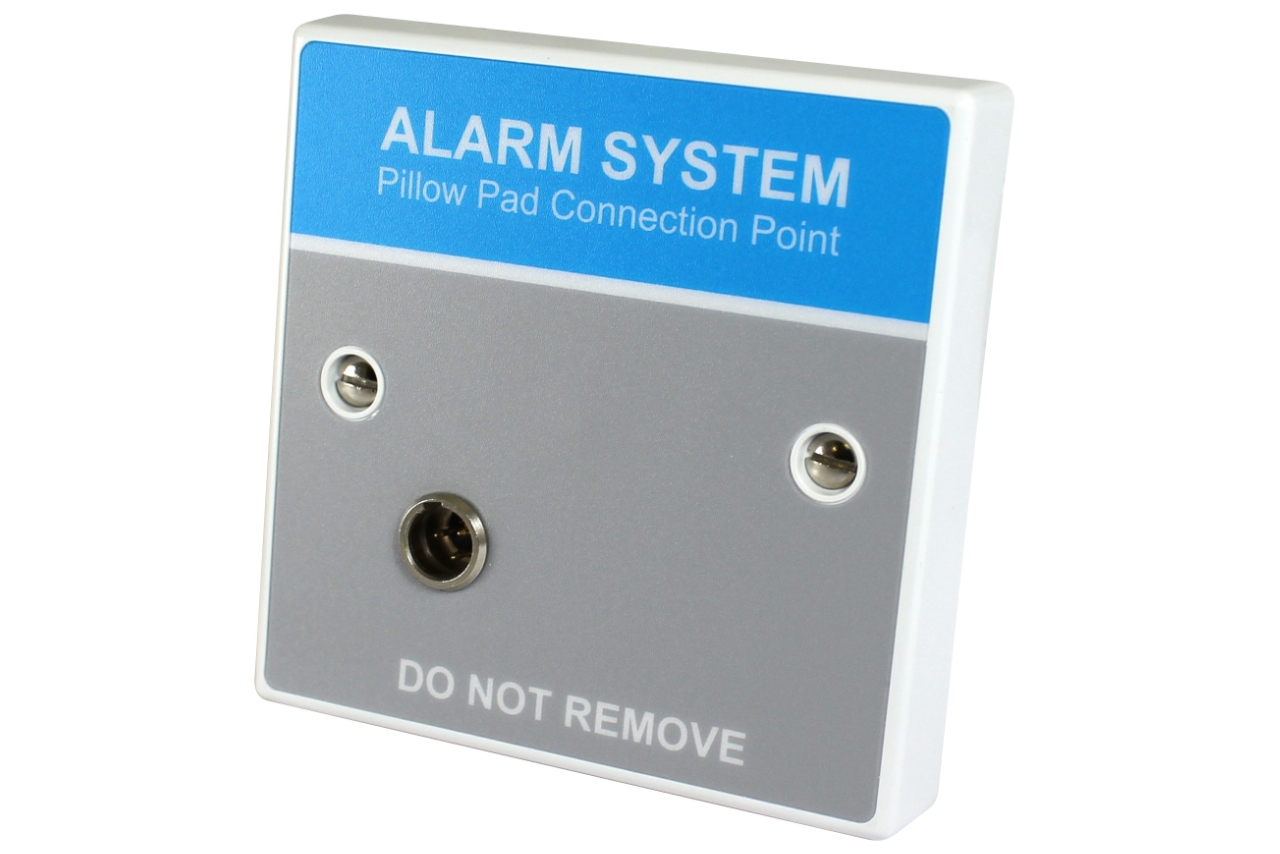

C-TEC BF320JP Single Gang Locking Jack Socket for BF320
C-TEC BF320JP can be used in conjunction with a BF320 vibrating pillow pad to warn the hearing impaired of a potential fire alarm or evacuation alert condition.
It is compatible with all C-TEC fire alarm and evacuation alert systems. Its locking mini-XLR connector and plug arrangement helps prevent accidental removal of the pillow pad, providing a more secure and reliable connection in critical warning applications.
The BF320JP is line monitored for disconnection via an internal 6k8Ω end of line resistor, selectable at the BF320JP. It also offers selectable 6K8 (pillow pad) or 27K (jack socket) end-of-line monitoring options for fire alarm or evacuation alert system use.
Designed for systems with a 10-30V DC voltage range, the unit fits on a standard UK 25mm back box and supersedes the older BF364 jack socket.
Key Features
| Feature | Details |
|---|---|
| Compatibility | Designed for use with C-TEC BF320 Vibrating Pillow Pad |
| System Compatibility | Compatible with all C-TEC fire alarm and evacuation alert systems |
| Connector Type | Locking mini-XLR connector and plug arrangement |
| Line Monitoring | Internal 6k8Ω end-of-line resistor for disconnection monitoring |
| EOL Options | Selectable 6K8 (pillow pad) or 27K (jack socket) monitoring options |
| Voltage Range | 10-30V DC |
| Mounting | Fits standard UK 25mm back box |
| Legacy Replacement | Supersedes older BF364 jack socket |
Technical Specifications
| Order Code | BF320JP - Single Gang Locking Jack Socket for BF320 |
|---|---|
| Compatibility | Designed for use with C-TEC's BF320 Vibrating Pillow Pad |
| Application / Operation | Connects across a conventional fire alarm system's 24V DC sounder circuit or across the circuits of a CA737 Four Way Flat Interface Unit on a C-TEC Evacuation Alert System |
| Operating Voltage | 10-30V DC |
| Alarm Current | 65mA at 24V, 110mA at 10V (when pressure pad connected) |
| Connections | +24V and 0V |
| Dimensions | 86 W × 86 H × 15mm D. Can be mounted on a standard UK 25mm single gang flush or surface back box |
| Construction | PVC White RAL90003. Grey/blue label |
| Weight | 56g |
| Working Temperature | -10ºC to +60ºC |
