Ideal for banks, post offices, small meeting rooms, reception desks, ticket booths and any other application requiring restricted or small area coverage
Requires no specialist audio experience or connectors – can be fitted by any competent electrician

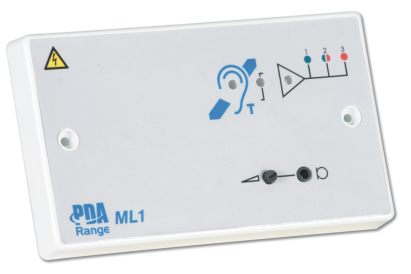

Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
Omni-directional AMT microphone (supplied) plugs directly into 3.5mm socket on the amplifier’s front
Line/outreach socket also provided (max 3 outreach plates per system)
User-adjustable mic. sensitivity and engineer-adjustable loop drive and input level controls
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
Price : On Request
Technical Specification
Type :
Wall-mounting (requires fixed mains wiring and a 25mm back box).
Coverage Areai :
1.2m2 approx.
Mains Supply :
The general requirement for the 230V a.c. Mains supply to the ML1 is fixed wiring, using 3 core cables of not less than 1mm2 fed from an isolating switched fused spur, fused at 3A.
Auxiliary Inputs :
1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1).
