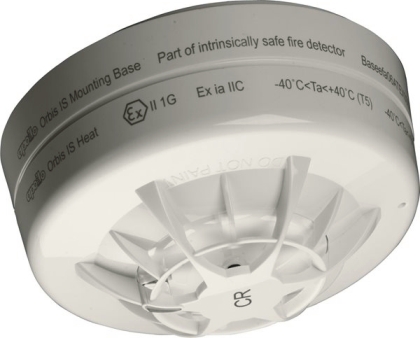

APOLLO Orbis ORB-HT-51154-APO I.S. CR Heat Detector with Flashing LED

The Orbis IS Heat Detector monitors temperature by using a single thermistor network which provides a voltage output proportional to the external air temperature. The Orbis IS range incorporates seven heat detector classes to suit a wide range of operating conditions.

Key Features

Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions
Reduced incidences of false alarms
Increased reliability of detection

Price : On Request

Technical Specifications

Model No - Tanım :	55000-121APO Konvansiyonel Sıcaklık Dedektörü
Applications :	B&Bs/guest houses Cafes Restaurants Retail Small to medium buildings Dusty environments
Chamber type :	Chevron
Heat classification	CR
Polarity :	L1 & L2 are polarity insensitive.
Holding voltage (min) :	6V
Holding voltage (max) :	6V
Holding voltage :	6 to 6V
Minimum voltage to light alarm LED :	12V
Alarm load :	420Ω in series with 2V drop
Humidity (min) :	0% RH
Humidity (max) :	95% RH
Humidity Note :	no condensation or icing
Humidity :	0% to 95% (no condensation or icing)
Operating temperature (min) :	-20°C
Operating temperature (max) :	90°C
Operating temperature :	-20 to 90°C
IP rating Value :	IP23D
Storage temperature (min) :	-30°C
Storage temperature (max)	120°C
Storage temperature	-30 to 120°C
Standards	EN 54-5
Approvals	LPCB SBSC CPR
Weight	80gr
Colour	White
Materials housing	Polycarbonate
Product length	42mm
Product diameter	100mm
