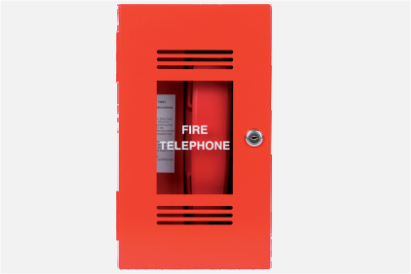

EVC301RLK Red Fire Telephone - c/w Handset - Key Lockable Version

  • In large buildings , Firefighters can talk to each other while battling fires by using EVC301RLK. EVC301RLK provides two-way communication to emergency staff
  • - An attractive Type A fire telephone outstation c/w telephone-style handset.
  • - Supplied in a durable 'lift key' lockable red steel case.
  • - Ideal for use in fire telephone and stadium marshalling applications.
  • - Allows stewards and fire marshals to communicate with a SigTEL Master Controller (and vice versa).
  • - Facilitates reliable two-way communication in a fire emergency between a permanently manned control room and key points of a site.
  • - True duplex speech.
  • - Can be surface mounted using a T-BEZ302 bezel.
  • - Meets and exceeds the requirements of BS 5839-9 when correctly installed



Price : On Request


Technical Specification
Model No - Description :
EVC301RLK - Red Fire Telephone
Approval Certification : Facilitates compliance with BS5839-9 when correctly installed.
Type :
Key Lockable
Operating Voltage :
11V DC derived from a compatible SigTEL Master Controller (drops to 6 V DC when in use).
Quiescent Current :
1mA
Operation Current : 25mA (current draw when handset is in use).
Indicator : When the operator in the control room calls the outstation, a pulsed ringing tone sounds at the outstation.
Microphone Frequency Responce :
250 Hz to 5 kHz ± 3 dB

Speaker Frequency Responce :
250 Hz to 4 kHz ± 3 dB
Wiring Type :
1 x 2 core fire resistant cable , 1.0 mm2 to 1.5 mm2.Cable Size , Maximum cable lenght 1km with 1mm cable
Cable Entry :
4 x 20 mm diameter
Color :
Red (RAL 3000)
Conrol :

Lift-key lock mechanism (a lift lock key must be issued by the person responsible for the system to all relevant personnel); Telephone-style handset (lift to answer or make a call).
Working Temperature :
-5ºC ~ +40ºC
Humidity :
%95
Dimensions :
278 mm(h) x 202 mm(w) x 100 mm(d).
Weight :

3Kg
